产品简介

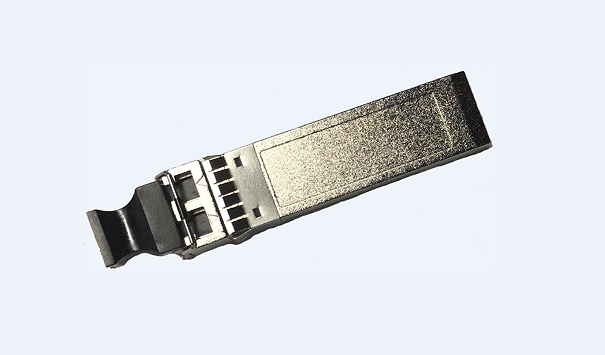

10G&25G SFP SR Module 光模块

技术特点

Hot pluggable SFP module 带电热插拔SFP模块
Low power consumption 低功耗
Design of All Metal EMI Tube 全金属EMI管壳设计
Provides DDM digital diagnostic information 提供DDM数字诊断信息
Firmware Open user fixed information and encrypted information storage
固件开放用户固定信息以及加密信息存储
850nm multi-mode short-distance transmission850nm 多模短距传输

应用领域

Hot pluggable SFP module 带电热插拔SFP模块
Low power consumption 低功耗
Design of All Metal EMI Tube 全金属EMI管壳设计
Provides DDM digital diagnostic information 提供DDM数字诊断信息
Firmware Open user fixed information and encrypted information storage
固件开放用户固定信息以及加密信息存储
850nm multi-mode short-distance transmission850nm 多模短距传输

技术参数

10G SFP + module 模块
Conforms to the IEEE 802.3ae standard specification 标准规范
Compliance with the SFF-8431/8432 MSA protocol specification 协议规范
OM3 multi-mode fiber transmission distance of 300m OM3多模光纤传输距离300m
Meet the ROHS6 exemption requirements 符合ROHS6豁免要求

25G SFP28 module 模块
Compliant with IEEE 802.3-2015 25GBASE-SR standard specification 标准规范
Compliance with the SFF-8665 MSA protocol specification 协议规范
OM3 multimode fiber transmission 100m OM3多模光纤传输距离100m
Meet the ROHS6 exemption requirements 符合ROHS6豁免要求
